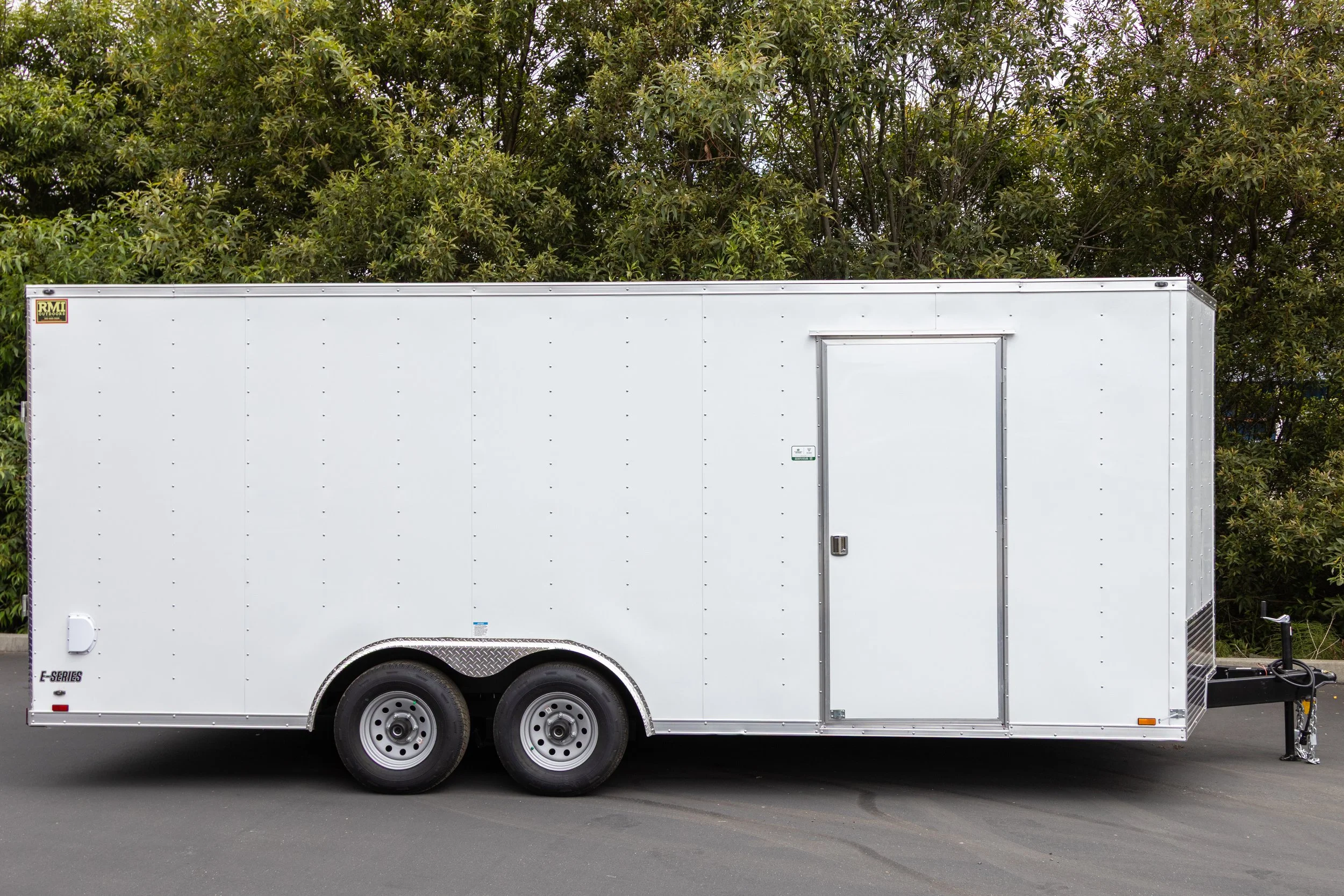

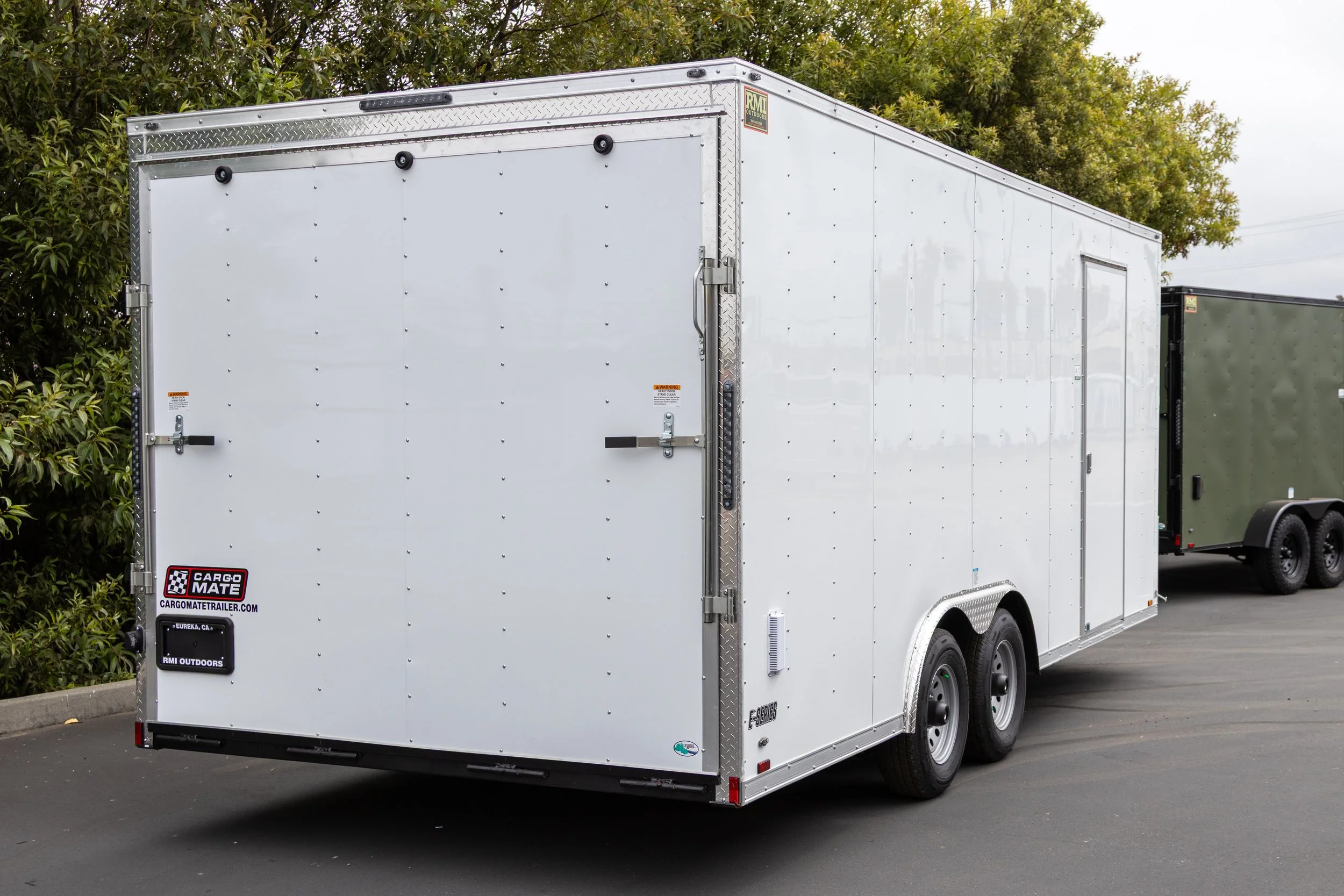

8.5x20 10K E-Series With Rear Ramp
STOCK NUMBER: FT-6282
MODEL: EHW8.520TA3
COLOR: Metallic White
REAR DOOR OPENING: 80" H X 91" W

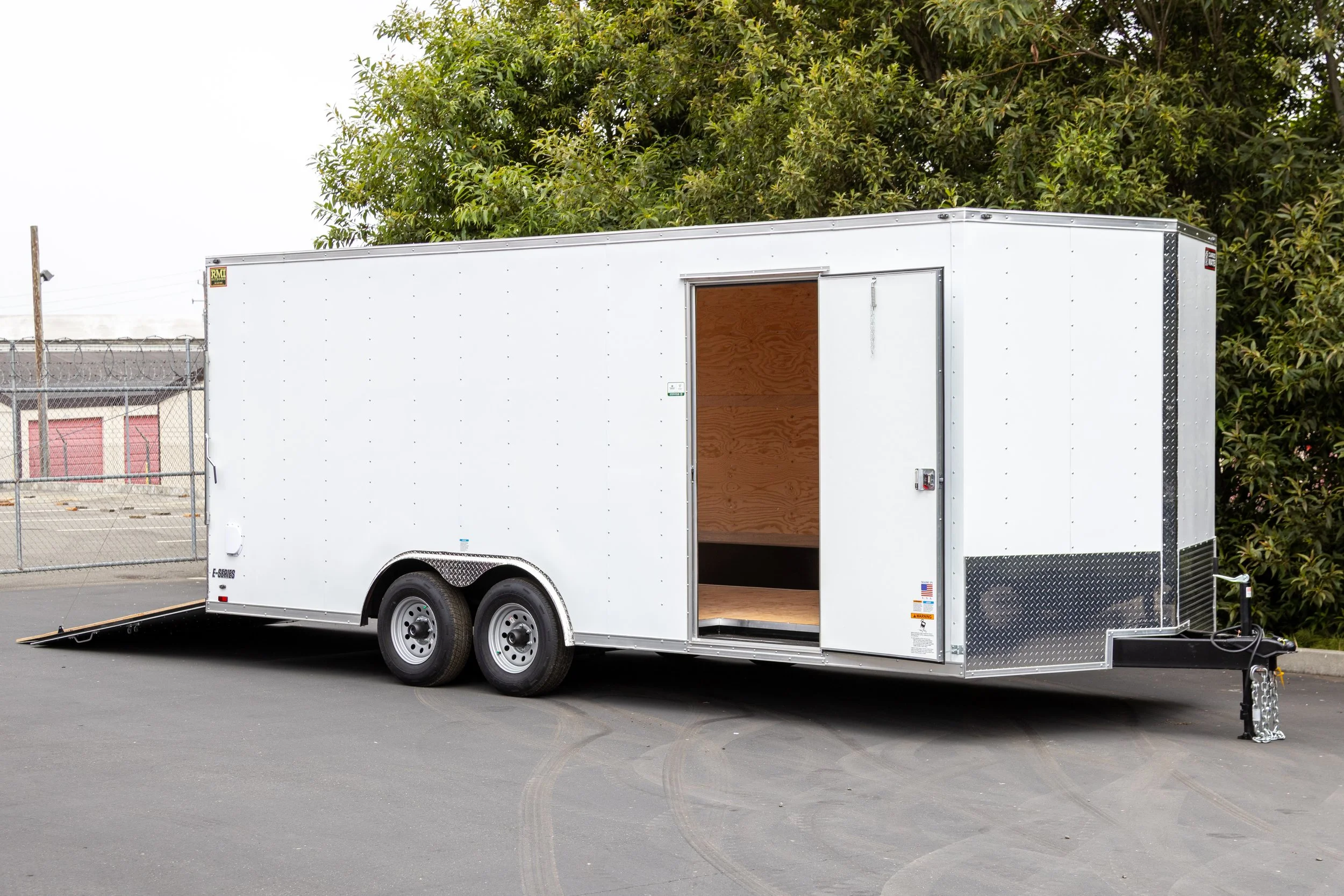

CURBSIDE DOOR OPENING: 76" H X 34" W
CURB WEIGHT: 3,441
PAYLOAD: 6,549
Tandem 5,200# Leaf spring drop axles
22575R15 Tires on powder coated steel rims
Top-wind jack with foot
2-5/16" Coupler
Welded safety chains
18” V-Nose Front
24" ATP Stoneguard
16" O/C Walls
24" O/C Floor and ceiling
2"X6" Tube frame
Galvanized roof
Aluminum top rails
0.030” aluminum exterior
Rear end aluminum wrap
Exposed steel painted epoxy black
Z-tech undercoat
LED clearance and tail lights
Aluminum exterior fenders

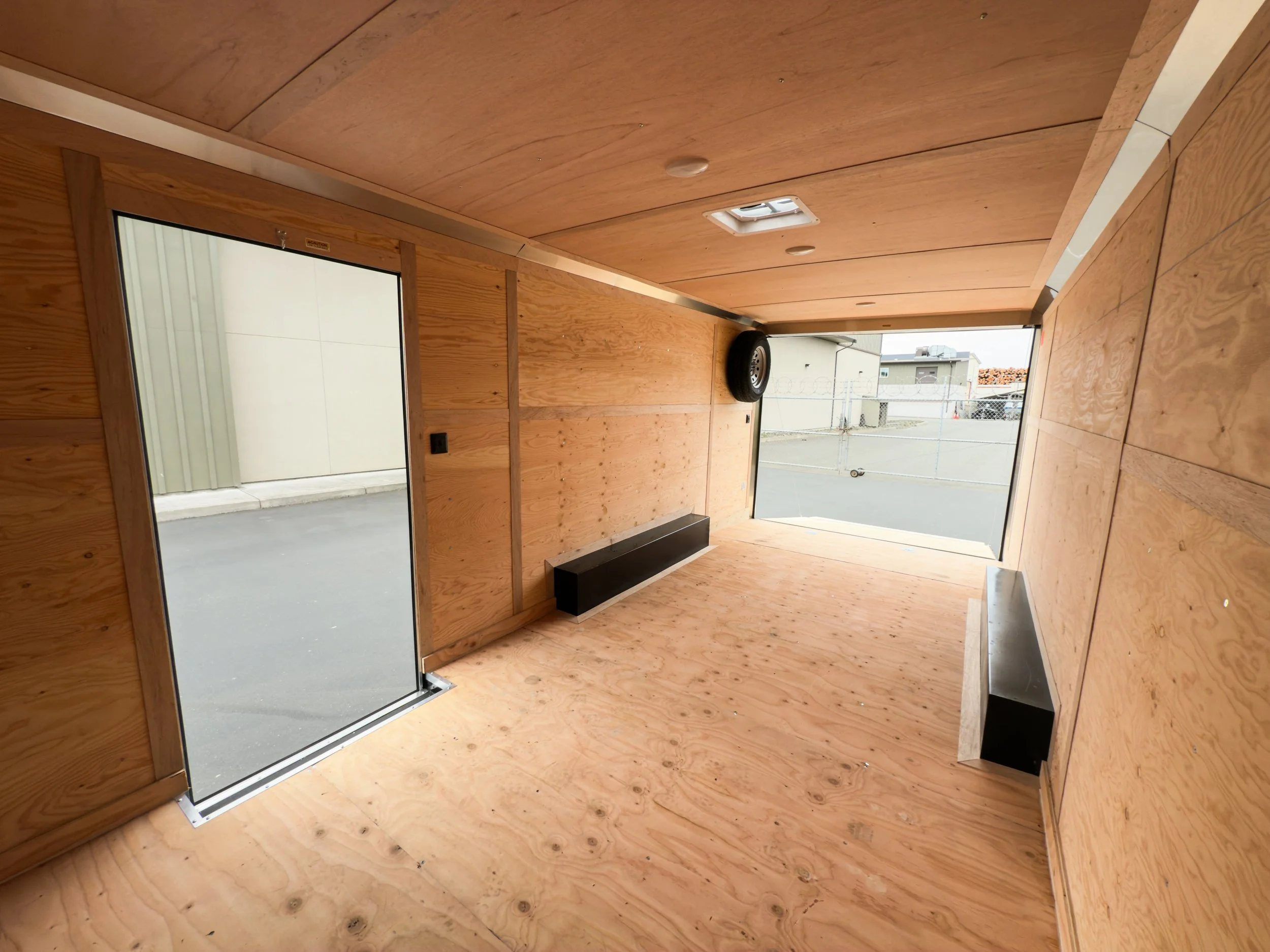

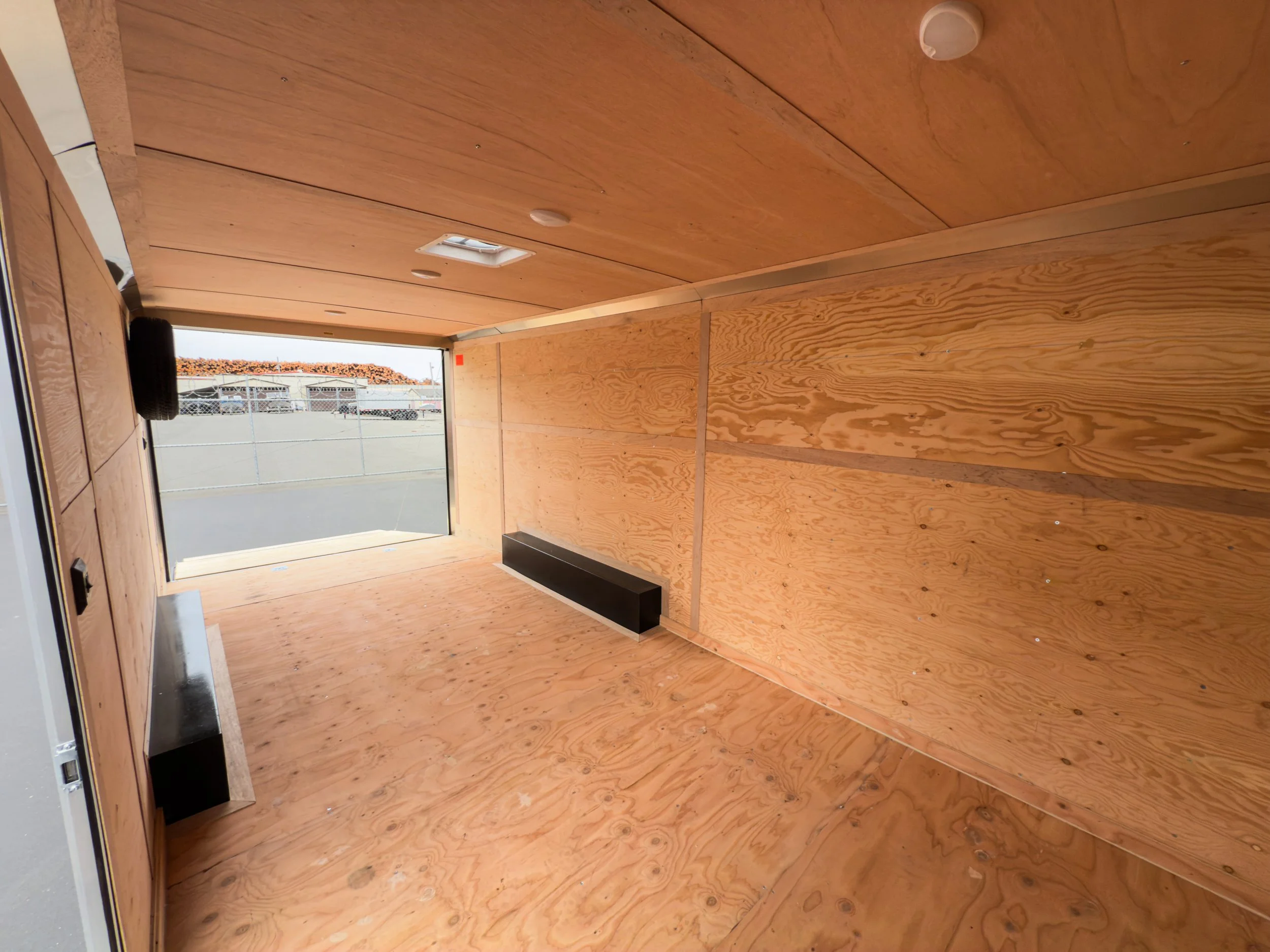

Interior:
3/4" Plywood Floor
3/8" OSB Walls
83" Interior height
95" Interior Width
81" Fender to Fender width
11" Fender height

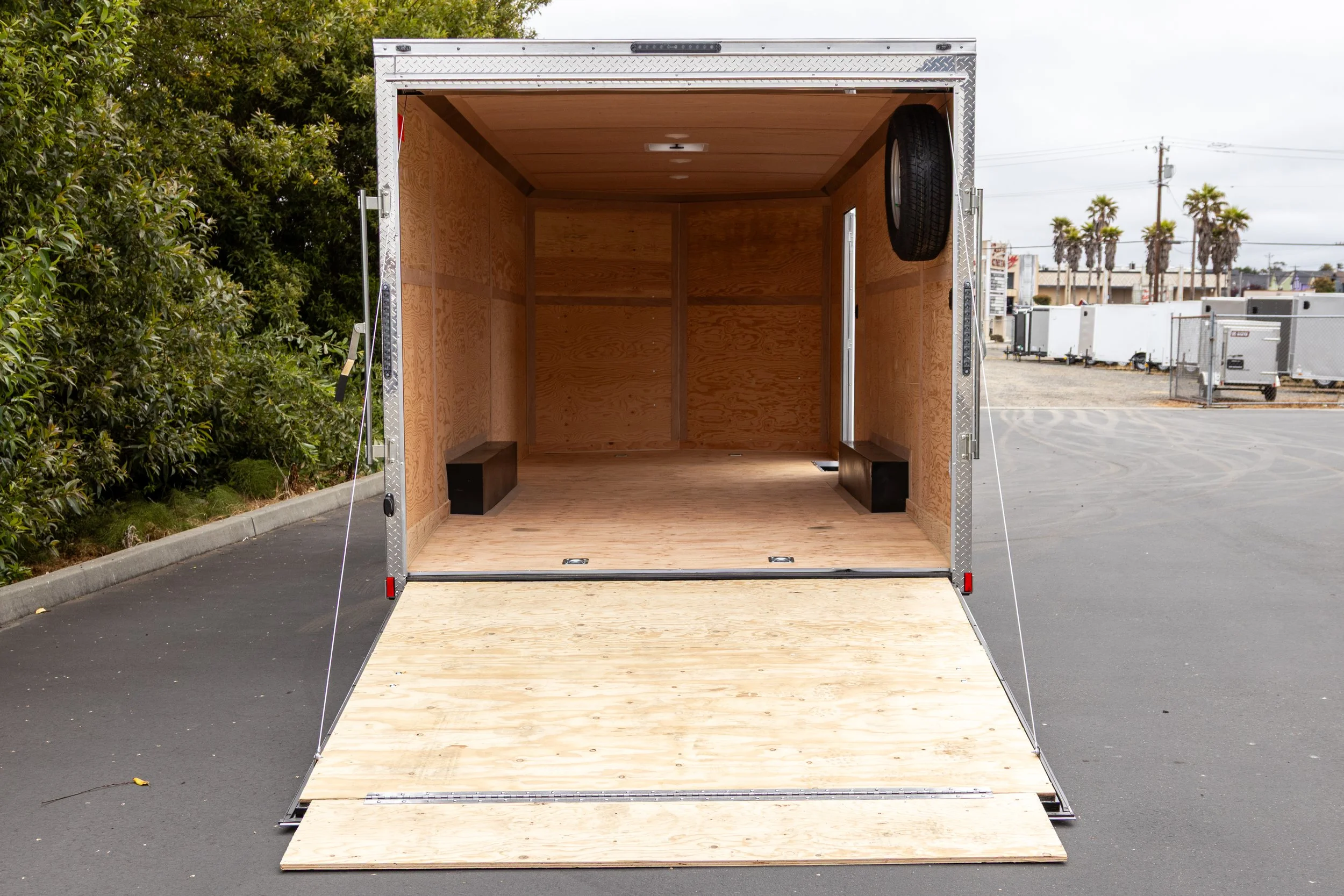

48" Long rear beavertail
(4) 5K D-Rings
(2) Dome lights
(1) 12V Switch
Flow through vents
Manual roof vent
3/16" Luan ceiling liner
